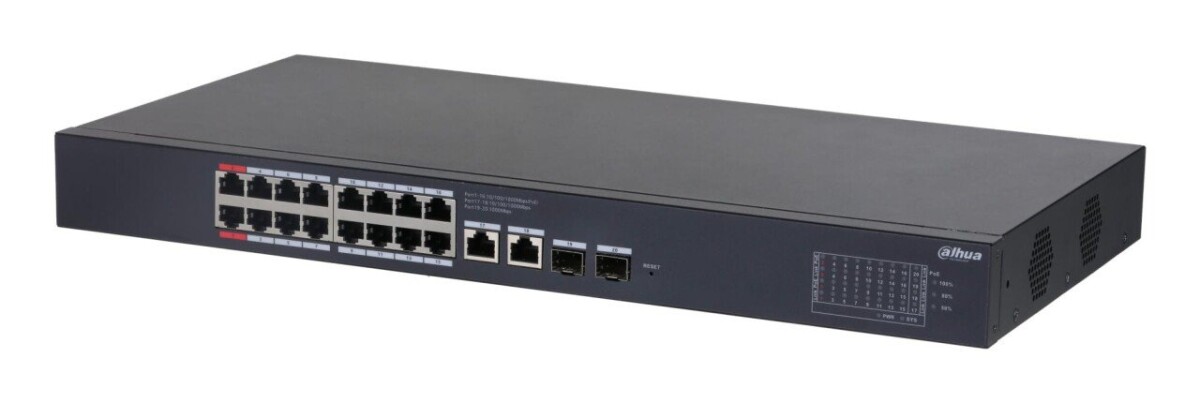

Switch|DAHUA|CS4220-16GT-190|Switch type Managed|Switch layer L2|Rack mounting
Код товара: CS4220-16GT-190
178.40 €
- Доступно по цене 178.40 €: 2 шт.
Switch|DAHUA|CS4220-16GT-190|Switch type Managed|Switch layer L2|Rack mounting Yes|Form factor 1U|18xRJ-45 ports|RJ-45 Ports Type Gigabit Ethernet (10/100/1000)|18xGigabit Ethernet (copper) ports quantity|2xSFP module slots quantity|Power over Ethernet (PoE) Yes|16xPower over Ethernet (PoE) ports quantity|Total Power over Ethernet (PoE) budget 190 W|CS4220-16GT-190
- Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab,IEEE802.3z standards
- Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards
- Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE
- A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof
Способы доставки
- Получи в магазине в Резекне 03.11.2026 бесплатно
- Получи заказ на дом 04.11.2026 От 3.62 €
- Экспресс-доставка 28.10.2026 От 6.50 €
Способы оплаты: Интернет-банк, Банковский перевод, Банковская карта, Aizdevums.lv лизинг, Incredit лизинг
Есть вопросы?
звоните или пишите
звоните или пишите
- Aizdevums.lv лизинг
- Incredit лизинг
| Производитель | DAHUA |
| Вес и размеры | |
|---|---|
| Высота | 44 mm |
| Глубина | 220 mm |
| Ширина | 440 mm |
| Общие характеристики | |
| Form Factor | 1U |
| Jumbo frames support | Yes |
| Reset button | Yes |
| Networking standards | IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z |
| Cloud-managed | Yes |
| Web-based management | Yes |
| Power over Ethernet (PoE) | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 18 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| 10G support | No |
| Flow control support | Yes |
| Jumbo frames | 15000 |
| MAC address table | 8000 entries |
| Mean time between failures (MTBF) | 762116 h |
| DHCP features | DHCP client |
| Rack mounting | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 190 W |
| Packet buffer memory | 0.5 MB |
| VLAN support | Yes |
| Switch layer | L2 |
| Loop protection | Yes |
| Number of VLANs | 32 |
| Virtual LAN features | Port-based VLAN |
| Gigabit Ethernet (copper) ports quantity | 18 |
| Power over Ethernet (PoE) ports quantity | 16 |
| Power supply included | Yes |
| Storage relative humidity (H-H) | 5 - 95 % |
| Name | NET SWITCH 20PORT 16POE/CS4220-16GT-190 DAHUA |
| LED indicators | Link/PoE/Power/System |
| Switching capacity | 40 Gbit/s |
| Forwarding rate | 29.76 Mpps |
| Switch type | Managed |
| Power source | AC/DC/PoE |
| Category Code | SWI |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01652 cubm |
| Unit Calculated Weight | 3.22 kg |
| Summary | Dahua Technology CS4220-16GT-190. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18. MAC address table: 8000 entries, Switching capacity:... |
| Storage temperature (T-T) | -40 - 70 °C |
| Product colour | Black |
| Weight | 2320 g |
| Package width | 540 mm |
| Package depth | 342 mm |
| Package height | 90 mm |
| Housing material | Metal |
| AC input frequency | 47/63 Hz |
| AC input voltage | 100 - 240 V |
| Package weight | 2970 g |
| Power consumption (max) | 212 W |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95 % |
| Model | CS4220-16GT-190 |
