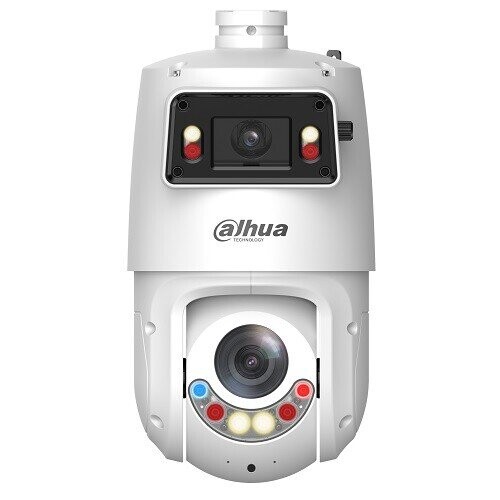

4 Megapixel PTZ cam SDT4E425-4F-GB-A-PV1-S2

Camera

Image Sensor

Overview channel: 1/2.8" CMOS; Detail channel: 1/2.8" CMOS

Pixel

Overview channel: 4 MP; Detail channel: 4 MP

Max. Resolution

Overview channel: 2560 (H) x 1440 (V); Detail channel: 2560 (H) x 1440 (V)

Electronic Shutter Speed

Overview channel: 1/3s-1/100000s
Detail channel: 1s-1/30000s

Scanning System

Progressive

Min. Illumination

Overview channel:
0.001 lux@F1.0 ( Color, 30 IRE)
0.0005 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
Detail channel:
0.005 lux@F1.6 ( Color, 30 IRE)
0.0005 lux@F1.6 (B/W, 30 IRE)
0 lux (illuminator on)

Illumination Distance

Overview channel: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (warm light)
Detail channel: 100 m (328.08 ft) (IR) ; 50 m (164.04 ft) (warm light)

Illuminator On/Off Control

Overview channel: Auto; Manual; Off;
Detail channel: Zoom Prio; Auto; Manual; Off

Illuminator Number

Overview channel: 2 (IR); 2 (warm light);
Detail channel: 2 (IR); 2 (dual light Fusion)

Lens

Focal Length

Overview channel: 2.8 mm; Detail channel: 5 mm–125 mm

Max. Aperture

Overview channel: F1.0; Detail channel: F1.6–F3.6

Field of View

Overview channel: H: 101°; V: 53°; D: 120°
Detail channel: H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7°

Optical Zoom

Overview channel: NA
Detail channel: 25x

Focus Control

Auto; manual; semi-auto

Close Focus Distance

Overview channel: 0.2 m (0.66 ft)
Detail channel: 0.1 m–0.5 m (0.33 ft–1.64 ft)

Iris Control

Overview channel: NA
Detail channel: Auto; manual; iris prio

Iris Control Type

DC-Iris

DORI Distance

LensDetectObserveRecognizeIdentifyOverview channel: 2.8 mm 56.0 m
( 183.72 ft) 22.4 m
( 73.49 ft) 11.2 m
( 36.74 ft) 5.6 m
( 18.37 ft)Detail channel:
W 100.0 m
( 328.08 ft) 40.0 m
( 131.23 ft) 20.0 m
( 65.62 ft) 10.0 m
( 32.81 ft)T 2500.0 m
( 8202.00 ft) 1000.0 m
( 3280.80 ft) 500.0 m
( 1640.40 ft) 250.0 m
( 820.20 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

PTZ

Pan/Tilt Range

Overview channel: Pan: 0°; Tilt: +12° to +24° (manual)
Detail channel: Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°/s–200°/s
Tilt: 0.1°/s–120°/s

Preset Speed

Pan: 240°/s
Tilt: 200°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Preset;Pattern;Tour;Scan

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking

Face Detection

Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots.

Smart Tracking

Wiztracking;Relay Tracking

SMD

SMD 4.0

AcuPick

Uses deep learning algorithms and works with backend devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets

Auto Patrol

After an IVS event occurs, the PTZ camera immediately initiates automated patrol of predefined key points to quickly cover potential risk areas and detect unknown threats in real time.

Active Deterrence

Light Warning

Red-Blue light warning
Flash duration: 5 s–30 s
Flash frequency: high, medium, low

Sound Warning

Offers 11 sound alarm and 10 custom sound alarms can be imported.
Sound can be set from 0%–100%.
Play times can be set from 1-10.

Video

Video Compression

Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)

Streaming Capability

3 streams

Resolution

Overview channel: 4M (2560 x 1440); 3M (2048 x 1536); 3M (2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)
Detail channel: 4M (2560 x 1440); 3M (2048 x 1536); 3M (2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)

Video Frame Rate

Overview channel: Main stream: 4M/3M/1080p/1.3M/720p@(1–25/30 fps)
Sub stream 1: D1/CIF/VGA@(1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps)
Detail channel: Main stream: 4M/3M/1080p/1.3M/720p@(1–25/30 fps)
Sub stream 1: D1/CIF/VGA@(1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 96 kbps–16,384 kbps
H265: 38 kbps–10,240 kbps

Day/Night

Overview channel: Auto; Color; B/W; Electronic
Detail channel: Auto; Color; B/W; Electronic

BLC

Yes

WDR

Overview channel: DWDR
Detail channel: 120 dB

HLC

Yes

White Balance

Overview channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Detail channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Overview channel: Auto; manual; gain prio
Detail channel: Auto; manual; gain prio

Noise Reduction

Overview channel: 2D NR; 3D NR
Detail channel: Auto: 2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Overview channel: NA
Detail channel: Electronic Image Stabilization (EIS)

Defog

Overview channel: Electronic
Detail channel: Electronic

Digital Zoom

Overview channel: NA
Detail channel: 16x

Image Rotation

Overview channel: NA
Detail channel: 180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the
same view
Multple colors and mosaic available

S/N Ratio

Overview channel: ?55 dB
Detail channel: ?55 dB

Audio

Audio Compression

PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729

Built-in MIC

Yes, built-in dual Mic

Built-in Speaker

Yes, built-in speaker

Network

Network Port

1 x RJ-45 (10/100 Base-T)

Network Protocol

HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;SMB;NFS

Interoperability

CGI;SDK;ONVIF (Profile S & Profile G & Profile T & Profile M)

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

Micro SD card (512 GB); FTP/SFTP; NAS

Browser

IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
iOS 10 and later versions

Management Software

DMSS;DSS Pro

Mobile Client

iOS;Android

Certification

Certifications

CE: EN 50130-4 EN 55032 EN 55035 EN 61000-3-3 EN IEC 61000-3-2 EN 62368-1

Port

Audio Input

1 channel (LINE IN, bare wire,built-in mic (mutually exclusive))

Audio Output

1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive))

Alarm Input

2 channels in: supports wet contact connection (max load 5 mA 3-5 VDC); supports dry contact connection

Alarm Output

1 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC

Alarm Linkage

Capture; recording; send email; preset; tour; pattern; alarm digital output; audio; warning light

Alarm Event

Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Audio I/O

1/1

Power

Power Supply

12 VDC(± 10%),3 A;PoE+(802.3at)

Power Consumption

Basic: 14 W
Max: 25 W (illuminator + heating glass + Siren and Light Active Deterrence + ICR + PTZ)

Power Adapter

Optional

Environment

Operating Temperature

–40 °C to +65 °C (–40 °F to +149 °F)

Operating Humidity

?95%

Protection

IP66;TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure

Casing Material

ADC12

Product Dimensions

160.0 mm x 184.4 mm x 304.6 mm (6.30" x 7.26" x 11.99")(L x W x H)

Net Weight

3.41 kg (7.52 lb)
