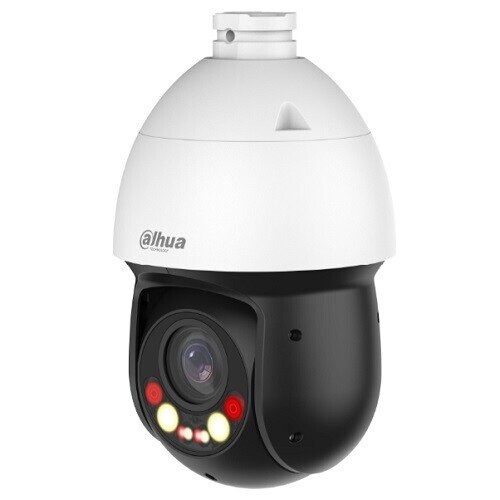

Поворотная видео камера 25x SD4D425MB-HNR

Camera Image Sensor 1/2.8" CMOS Pixel 4 MP Max. Resolution 2560 (H) x 1440 (V) ROM 4 GB RAM 1 GB Electronic Shutter Speed 1 s–1/30,000 s Scanning System Progressive Min. Illumination 0.005 lux@F1.6 (Color, 30 IRE);
0.0005 lux@F1.6 (B/W, 30 IRE);
0 lux (illuminator on) Illumination Distance 100 m (328.08 ft) (IR);
100 m (328.08 ft) (Warm light) Illuminator On/Off Control Zoom Prio; Manual; Auto; Off Illuminator Number 2 (IR); 2 (Warm light); 2 (Dual-core light) Lens Focal Length 5 mm–125 mm Max. Aperture F1.6–F3.6 Field of View H:54.1°–3.4°; V: 31.4°–1.9°; D: 61.1°–3.9° Optical Zoom 25x Focus Control Auto; semi-auto; manual Close Focus Distance 0.1 m–0.5 m (0.33 ft–1.64 ft) Iris Control Auto DORI Distance LensDetectObserveRecognizeIdentifyW 100.0 m
( 328.08 ft) 40.0 m
( 131.23 ft) 20.0 m
( 65.62 ft) 10.0 m
( 32.81 ft)T 2,500.0 m
( 8,202.00 ft) 1,000.0 m
( 3,280.80 ft) 500.0 m
( 1,640.40 ft) 250.0 m
( 820.20 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. PTZ Pan/Tilt Range Pan: 0° to 360° endless;
Tilt: –15° to +90°, auto flip 180° Manual Control Speed Pan: 0.1°–200°/s;
Tilt: 0.1°–120°/s Preset Speed Pan: 0.1°–240°/s;
Tilt: 0.1°–200°/s Preset 300 Tour 8 Pattern 5 Scan 5 Power-off Memory Yes Idle Motion Preset;Pattern;Tour;Scan Intelligence IVS (Perimeter Protection) Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking Face Detection Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots. Smart Tracking WizTracking SMD SMD 4.0 AcuPick Uses deep learning algorithms and works with backend devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets Auto Patrol It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets Video Video Compression Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) Streaming Capability 3 streams Resolution 4M (2560 x 1440); 3M (2304 x 1296); 1080p (1920 x 1080); 960p (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA(640 x 480);CIF (352 x 288/352 x 240) Video Frame Rate Main stream: 4M/3M/1080p/1.3M/720p@(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps) Bit Rate Control CBR/VBR Video Bit Rate H264: 96 kbps–11,776 kbps
H265: 38 kbps–7,168 kbps Day/Night Auto (ICR)/Color/B/W BLC Yes WDR 120 dB HLC Yes White Balance Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp Gain Control Auto; manual; Gain priority Noise Reduction 2D NR; 3D NR Motion Detection Yes Region of Interest (RoI) Yes Image Stabilization Electronic Image Stabilization (EIS) Defog Electronic Digital Zoom 16x Image Rotation 180° Privacy Masking Up to 32 areas can be set, with up to 8 areas in the same view S/N Ratio ?55 dB Audio Audio Compression PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729, G.723 Network Network Port 1 x RJ-45 (10/100 Base-T) Network Protocol HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;SMB;NFS Interoperability ONVIF (Profile S & Profile G & Profile T);CGI;SDK Streaming Method Unicast/Multicast User/Host 20 (total bandwidth: 64 M) Storage Micro SD card (512 GB); FTP/SFTP; NAS Browser web5.0:
IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
iOS 10 and later versions Management Software DMSS;DSS Pro Mobile Client iOS;Android Certification Certifications CE: EN55032/EN55024/EN50130-4 Port Audio Input 1 channel (LINE IN, bare wire) Audio Output 1 channel (LINE OUT,bare wire) Alarm Input 2 Alarm Output 1 channel Alarm Linkage Capture; recording; send email; preset; tour; pattern; alarm digital output Alarm Event Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection Alarm I/O 2/1 Audio I/O 1/1 Power Power Supply 12 VDC, 3 A ± 10%
PoE (802.3at) Power Consumption DC:
Basic: 8 W;
Max: 20 W (illuminator + PTZ)
PoE:
Basic: 11 W;
Max: 23 W (Illuminator+PTZ) Power Adapter Optional Environment Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F) Operating Humidity ?95% Protection IP67;TVS 6000 V lightning proof; surge protection; voltage transient protection Structure Product Dimensions 270.4 mm x D160 mm (10.65" x D6.30") Net Weight 2.4 kg (5.29 lb) Gross Weight 3.9 kg (8.60 lb)
