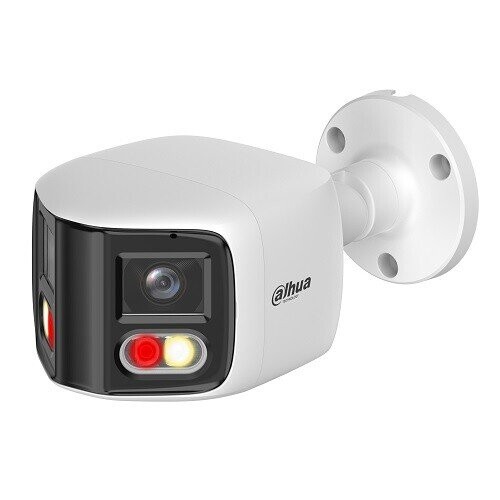

IP Камера 8MP PFW2849S-A180-S-PV

Camera

Image Sensor

1/2.7" CMOS (x2)

Max. Resolution

4096 (H) x 1860 (V)

ROM

128 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 lux@F1.4 (Color, 30 IRE)
0.0005 lux@F1.4 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

2.8 mm: Up to 25 m (82.02 ft) (IR)
Up to 20 m (65.62 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

2 (IR LED); 2 (Warm light)

Angle Adjustment

Pan: 0° to 360°
Tilt: –20° to 90°
Rotation: 0° to 360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm

Max. Aperture

F1.4

Field of View

2.8 mm: H: 180°; V: 86°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.8 m (2.62 ft)

DORI Distance

Lens Detect Observe Recognize Identify 2.8 mm 50.6 m
( 166.01 ft) 20.2 m
( 66.27 ft) 10.1 m
( 33.14 ft) 5.1 m

( 16.73 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

EPTZ

Enlarge and track the targets of intelligent alarms

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD

SMD 3.0

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 4096 x 1860@(1–20 fps)
Sub stream: 1200 x 536@(1–20 fps)
Third stream: 1920 x 860@(1–20 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Streaming Capability

3 streams

Resolution

8M (4096 x 1860); 6M (3632 x 1632); 4M (3040 x 1368); 1200 x 536; 1920 x 860; 960 x 432; D1 (704 x 576/704 x 480)

Bit Rate Control

VBR;CBR

Video Bit Rate

H.264: 6 kbps–16384 kbps;
H.265: 6 kbps–16384 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Smart Dual Light

Yes

Defog

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes, built-in dual Mic

Built-in Speaker

Yes, built-in speaker;Max power consumption: 2 W; max sound level at 10 cm: 110 dB
* Test results from laboratory

Audio Compression

G.711a; G.711Mu; G.726; PCM

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 512 GB); NAS

Browser

IE: IE 8 and later;
Chrome;
Firefox

Management Software

SmartPSS Lite; DSS; DMSS; DoLynk Care

Mobile Client

iOS;Android

Security

Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade

Function

Light Warning

Warm light warning
Flash/Solid on duration: 5 s–30 s
Flash frequency: high, medium, low

Sound Warning

Offers 11 sound alarms and supports importing 10 custom sound alarms
Sound: 0–100
Play times can be set from 1 to 10

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Power

Power Supply

12 VDC (±30%); PoE (802.3af)

Power Consumption

Basic: 4.7 W (12 VDC); 6.2 W (PoE);
Max.: 9.8 W (12 VDC); 11.9 W (PoE) (H.265 + WDR + light on + intelligence on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

? 95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

? 95% (RH), non-condensing

Protection

IP67

Anti-corrosion Level

Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.

Structure

Casing Material

Metal

Product Dimensions

183.1 mm x 99.0 mm x 78.0 mm (7.21" x 3.90" x 3.07") (L x W x H)

Net Weight

0.66 kg (1.46 lb)

Gross Weight

0.83 kg (1.83 lb)
