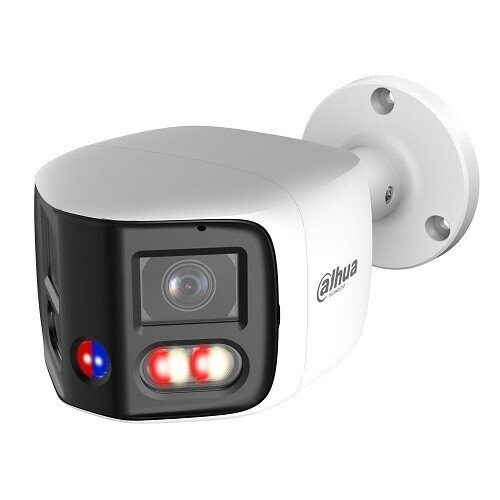

IP Камера 12MP PFW31259S-A180-AS-PV 2.8mm

Camera Image Sensor 1/2.5" CMOS Max. Resolution 5000 (H) x 2500 (V) ROM 256 MB RAM 2 GB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.002 lux@F1.0 (Color, 30 IRE)
0.0002 lux@F1.0 (B/W, 30 IRE)
0 lux (Illuminator on) S/N Ratio >56 dB Illumination Distance 2.8 mm: Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light) Illuminator On/Off Control Auto;Manual Illuminator Number 4 (Multi-core (IR + warm) light) Angle Adjustment Pan: 0° to 360°
Tilt: –20° to 90°
Rotation: 0° to 360° Lens Lens Type Fixed-focal Lens Mount M12 Focal Length 2.8 mm Max. Aperture F1.0 Field of View 2.8 mm: H: 180°; V: 78° Iris Control Fixed Close Focus Distance 2.8 mm: 1.4 m (4.59 ft) DORI Distance LensDetectObserveRecognizeIdentify2.8 mm 59.6 m
( 195.54 ft) 23.8 m
( 78.08 ft) 11.9 m
( 39.04 ft) 6.0 m

( 19.69 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. Intelligence IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection SMD SMD 4.0 AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animals and motor vehicles, and search through live and recorded videos to quickly locate targets. Face Detection (Full Image) Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face exposure; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization duration setting. Smart Search Works together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. Video Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) AI Coding AI H.264; AI H.265
*Includes smart codec technology, Smart H.264+ and Smart H.265+. Video Frame Rate Main stream: 5000 x 2500@(1–20 fps)
Sub stream: 1200 x 536@(1–20 fps)
Third stream: 1920 x 860@(1–20 fps)
*The values above are the max frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. Streaming Capability 3 streams Resolution 12M (5000 x 2500); 1920 x 860; 1200 x 536; 960 x 432; D1 (704 x 576/704 x 480) Bit Rate Control VBR;CBR;ABR Video Bit Rate H.264: 6 kbps–32768 kbps;
H.265: 6 kbps–32768 kbps Day/Night Auto(ICR)/Color/B/W BLC Yes HLC Yes WDR 120 dB Scene Self-adaptation (SSA) Yes White Balance Auto; natural; street lamp; outdoor; manual; regional custom Gain Control Auto/Manual Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest (RoI) Yes (4 areas) Smart Illumination Yes Smart Dual Light Yes Defog Yes Privacy Masking 8 areas Audio Built-in MIC Yes, built-in dual Mic Built-in Speaker Yes, built-in dual speaker;Max power consumption: 2 W; max sound level at 10 cm: 110 dB
* Test results from laboratory Audio Compression PCM; G.711a; G.711Mu; G.726; G.723 Alarm Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; loitering detection; stay detection; face detection (full image); scene changing; audio detection; voltage detection; defocus detection; SMD; security exception Network Network Port RJ-45 (10/100/1000 Base-T) SDK and API Yes Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour; Auto Registration Interoperability ONVIF (Profile S & Profile G & Profile T & Profile M); CGI User/Host 20 (Total bandwidth: 64 M) Storage FTP; SFTP; Micro SD card (support max 512 GB); NAS Browser IE; Chrome; Firefox Management Software Smart PSS Lite; DSS; DMSS; DoLynk Care Mobile Client iOS;Android Security Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning Function Light Warning Light Warning: Red and blue light warning
Flash/Solid on duration: 5 s–30 s
Flash frequency: high, medium, low Sound Warning Sound Warning:
Offers 11 sound alarms and supports importing custom sound alarms
Sound: 0-100
Play times can be set from 1 to 10 Certification Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU Port Audio Input 1 channel (RCA port) Audio Output 1 channel (RCA port) Alarm Input 1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection Alarm Output 1 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC Power Power Supply 12 VDC (±30%); PoE+ (802.3at) Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. Power Consumption Basic: 3.3 W (12 VDC); 4.5 W (PoE);
Max.: 10.7 W (12 VDC); 12.8 W (PoE) (H.265 + WDR + warm light + sound and light active deterrence + intelligence on) Environment Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity ?95% (RH), non-condensing Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity ?95% (RH), non-condensing Protection IP67 Anti-corrosion Level Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. Structure Casing Material Metal Product Dimensions 183.1 mm x 99.0 mm x 78.0 mm (7.21" x 3.90" x 3.07") (L x W x H) Net Weight 0.695 kg (1.53 lb) Gross Weight 0.870 kg (1.92 lb)
