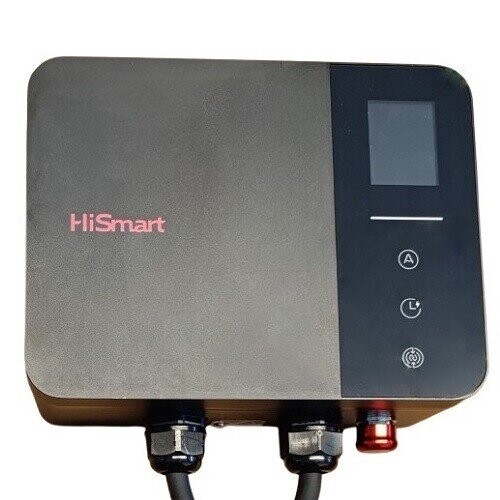

Зарядная станция для электромобилей, Type2, 22кВт, 32А

EV charging station, 22kW, 32A, 3-phase, with Type 2 connector, wall-mounted (or pole-mounted), IP65 rated for indoor or outdoor use, 5m cable, Plug&Play, 3x NFC cards, TUYA Smart App.

Features:
The EV charging station supports charging power up to 22kW.
5m EV charging cable.
Supports control via the "Tuya Smart" app.
The charging station is equipped with a Type 2 connector, the European standard for EV charging.
Powerful and high-quality, yet compact.
Easy to use – the intuitive interface allows you to quickly and conveniently select the desired charging mode.
Supports Plug&Play charging (once connected to the electric vehicle, charging can start automatically).
Includes 3 NFC cards.


Technical specifications:
Max. charging current: 32A (3-phase).
Max. charging power: 22kW (3-phase).
Input: 380~415V AC (3-phase), 6-32A, 50Hz.
Output: IEC 62196-2, Type 2 (European), Mennekes, 7-pin.
Connectivity: Wi-Fi 2.4GHz (Bluetooth is used for initial pairing with the Tuya Smart app).
Charging control: Tuya App, NFC card, Plug&Play.
Operating temperature: -25°C ~ +50°C.
Protection rating: IP65 (charging station), IP54 (plug).
Protection against overheating, overvoltage, undervoltage, overcurrent and leakage current; grounding monitoring.
Cable specification: 5x6mm2 + 1x0.75mm2 (EN50620).
Certification: CE, RoHS, TUV.
Complies with: IEC 61851-1:2017.
Dimensions: 254 x 198 x 80 mm.
Charging cable length: 5000 ± 200 mm.
Input power cable length: 800 ± 100 mm.
Housing material: plastic.
Weight: 5.13kg.
Colour: black.


Package contents:
Charging station.
Charging station mounting bracket (screw-mounted).
Plug holder.
Screw set.
3x NFC cards.
User manual.


Warranty: 24 months.
