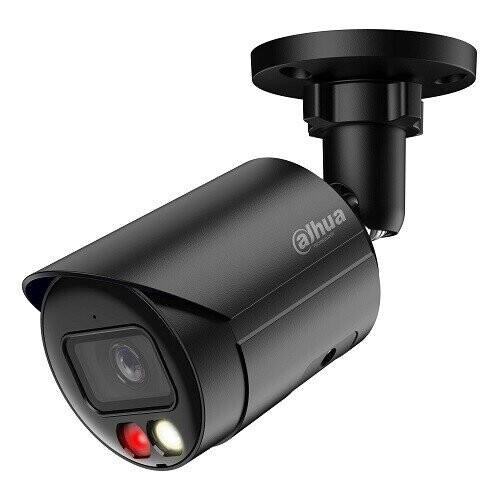

IP Камера 6MP HFW2649S-S-IL 2.8mm Black

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

3288 (H) x 1850 (V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.007 lux@F1.6 (Color, 30 IRE)
0.0007 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

2.8 mm: Up to 30 m (98.43 ft) (IR LED)
Up to 20 m (65.62 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

1 (IR LED); 1 (Warm light)

Angle Adjustment

Pan: 0° to 360°
Tilt: 0° to 90°
Rotation: 0° to 360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 112°; V: 61°; D: 132°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.0 m (3.28 ft)

DORI Distance

LensDetectObserveRecognizeIdentify2.8 mm 61.2 m
( 200.79 ft) 24.5 m
( 80.38 ft) 12.2 m
( 40.03 ft) 6.1 m

( 20.01 ft)




*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD

SMD Plus

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

AI Coding

AI H.265; AI H.264 (Super AI Coding)
*Includes smart codec technology, Smart H.265+ and Smart H.264+

Video Frame Rate

Main stream: 3288x1850@(1–20 fps)
Sub stream: 704 x 576@(1–20 fps)/704 x 480@(1–20 fps)
Third stream: 352 x 288/352 x 240@1 fps
*The values above are the max frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Streaming Capability

3 streams

Resolution

6M (3288 x 1850/3200 x 1800); 5M (2880 x 1620); 4M (2688 x 1520); 3M (2048 x 1536/2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)

Bit Rate Control

VBR;CBR

Video Bit Rate

H.264: 32 kbps–8192 kbps;
H.265: 12 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Smart Dual Light

Yes

Image Rotation

0°/90°/180°/270° (supports 90°/270° with 2688 x 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes, built-in Mic

Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; invalid access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; NFS; P2P; Auto Registration

Interoperability

ONVIF (Profile S & Profile G & Profile T); CGI

User/Host

6 (Total bandwidth: 48 M)

Storage

FTP; SFTP; Micro SD card (support max 512 GB)

Browser

IE; Chrome; Firefox

Management Software

SmartPSS Lite; DSS; DMSS; DoLynk Care

Mobile Client

iOS;Android

Security

Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning;SSL/TLS1.2;AES 256

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Power

Power Supply

12 VDC (±30%); PoE (802.3af)

Dual Power Backup

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power Consumption

Basic: 1.8 W (12 VDC); 2.6 W (PoE);
Max.: 4.3 W (12 VDC); 5.4 W (PoE) (H.265 + intelligence + WDR + warm light on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

?95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

?95% (RH), non-condensing

Protection

IP67

Anti-corrosion Level

Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.

Structure

Casing Material

Metal

Product Dimensions

169.8 mm x 70 mm x 70 mm (6.69" x 2.76" x 2.76") (L x W x H)

Net Weight

0.47 kg (1.04 lb)

Gross Weight

0.59 kg (1.30 lb)
