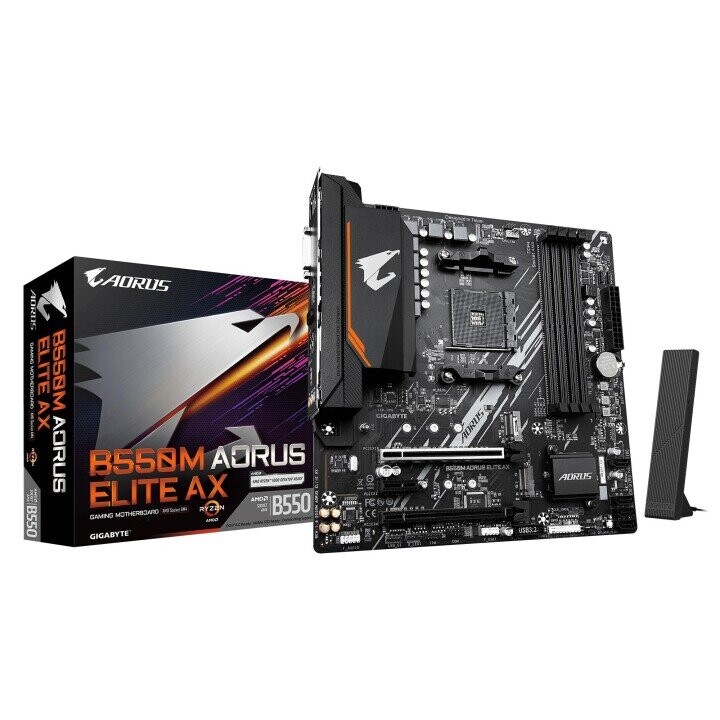

Mainboard|GIGABYTE|AMD B550|Socket AM4|micro ATX|RAM
Код товара: B550MAORUSELITEAX(REV.1.4)
114.82 € / шт.
- Доступно по цене 114.82 €: 30 шт.
Mainboard|GIGABYTE|AMD B550|Socket AM4|micro ATX|RAM DDR4-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|2xNumber of M.2 (M) slots|B550M AORUS ELITE AX (REV. 1.4)|B550MAORUSELITEAX1.4
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge/
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
- Onboard Wi-Fi 6E 802.11ax & BT 5.4
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- Realtek GbE LAN with Bandwidth Management
- Rear HDMI & DVI Support
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
Способы доставки
- Получи в магазине в Резекне 05.11.2026 бесплатно
- Получи заказ на дом 06.11.2026 От 3.62 €
- Экспресс-доставка 30.10.2026 От 6.50 €
Способы оплаты: Интернет-банк, Банковский перевод, Банковская карта, Aizdevums.lv лизинг, Incredit лизинг
Есть вопросы?
звоните или пишите
звоните или пишите
- Aizdevums.lv лизинг
- Incredit лизинг
| Производитель | Gigabyte |
| Вес и размеры | |
|---|---|
| Глубина | 244 mm |
| Ширина | 244 mm |
| Порты и интерфейсы | |
| Bluetooth | 5.3, Yes |
| Общие характеристики | |
| Bullet Points | Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 5+3 Phases Pure Digital VRM Solution with Low... |
| 12V power connector | Yes |
| Motherboard chipset family | AMD |
| Ethernet interface type | Gigabit Ethernet |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Supported storage drive interfaces | M.2,SATA III |
| PCI Express x16 (Gen 3.x) slots | 1 |
| RAID support | Yes |
| RAID levels | 0/1/10 |
| Unbuffered memory | Yes |
| ECC ?ompatibility | ECC & Non-ECC |
| Supported processor sockets | Socket AM4 |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series |
| Motherboard form factor | micro ATX |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Power source type | ATX |
| LAN controller | Realtek RTL8111H |
| Number of M.2 (M) slots | 2 |
| BIOS memory size | 128 Mbit |
| Supported storage drive types | HDD & SSD |
| 1st M.2 highest PCI Express generation | 4.0 |
| Long Description | GIGABYTE B550M AORUS ELITE AX (REV. 1.4). Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal... |
| Maximum number of SMP processors | 1 |
| Antenna included | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| ACPI version | 5.0 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| 1st M.2 largest key size | 22110 |
| PC health monitoring | Fan/Temperature/Voltage |
| BIOS type | UEFI AMI |
| WiFi-AP antenna jack | 2 |
| Serial port headers | 1 |
| RGB LED pin header | Yes |
| Number of water pump connectors | 2 |
| Number of RGB LED pin headers | 5 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of CPU fan connectors | 1 |
| Front panel connector | Yes |
| Supported memory clock speed (max) | 4733 MHz |
| Maximum internal memory per slot | 32 GB |
| Clear CMOS jumper | Yes |
| Supported memory clock speeds | 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz |
| Supported memory types | DDR4-SDRAM |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| Warranty period | 3 year(s) |
| Package weight | 1273 g |
| USB 2.0 ports quantity | 4 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Package height | 65 mm |
| Number of memory slots | 4 |
| Package depth | 265 mm |
| Package width | 265 mm |
| Product colour | Brown |
| Summary | GIGABYTE B550M AORUS ELITE AX (REV. 1.4). Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal... |
| Unit Calculated Weight | 1.26 kg |
| Unit Calculated Volume | 0.006165 cubm |
| Units per Shipping Box | 10 |
| Unit Box Width | 0.265 |
| Unit Box Length | 0.27 |
| Unit Box Height | 0.07 |
| Audio output channels | 7.1 channels |
| Country of origin | China |
| Headphone outputs | 1 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| DVI-D ports quantity | 1 |
| EPS power connector (8-pin) | Yes |
| Component for | PC |
| PS/2 ports quantity | 1 |
| Motherboard chipset | AMD B550 |
| Audio chip | Realtek ALC897 |
| Line-in | Yes |
| WLAN controller model | Realtek RTL8852CE |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Maximum internal memory | 128 GB |
| Processor manufacturer | AMD |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| DirectX version | 12.0 |
| Cooling type | Passive |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| Bundled software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Screws included | Yes |
| Microphone in | Yes |
| HDCP | Yes |
| Category Code | MBA |
| Model | B550M AORUS ELITE AX (REV. 1.4) |
