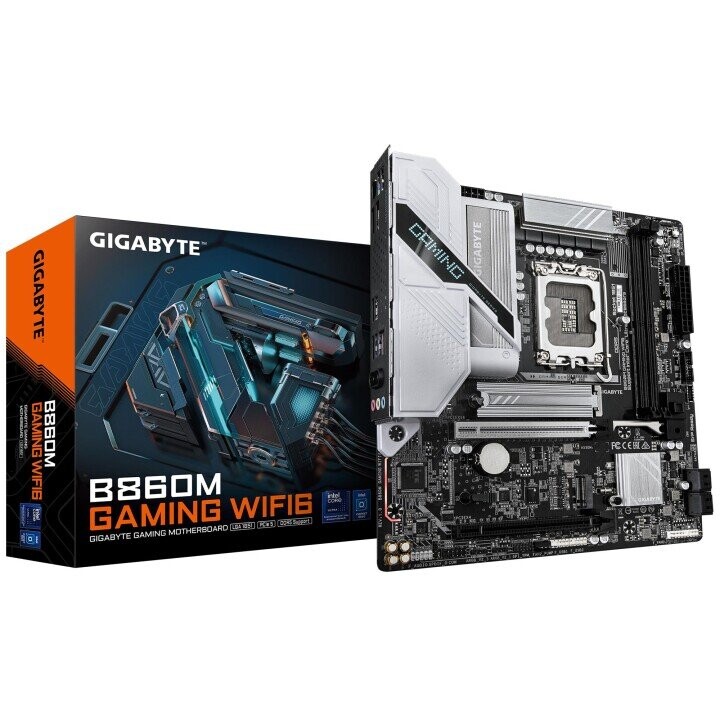

Mainboard|GIGABYTE|Intel B860 Express|LGA1851|Micro-ATX|Memory DDR5|Memory
Код товара: B860MGAMINGWIFI6
158.47 € / шт.
- Доступно по цене 158.47 €: 21 шт.
Mainboard|GIGABYTE|Intel B860 Express|LGA1851|Micro-ATX|Memory DDR5|Memory slots 2|B860MGAMINGWIFI6
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
- Supports Intel Core Ultra processors (Series 2)
- Hybrid 8+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- PCIe EZ-Latch Plus: PCIe slots with Quick Release & Screwless Design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage: 2*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking: 2.5GbE LAN & Wi-Fi 6 802.11ax
- Extended Connectivity: HDMI, DisplayPort
Способы доставки
- Получи в магазине в Резекне 29.12.2025 бесплатно
- Получи заказ на дом 30.12.2025 От 3.62 €
- Экспресс-доставка 23.12.2025 От 6.00 €
Способы оплаты: Интернет-банк, Банковский перевод, Банковская карта, Aizdevums.lv лизинг, Incredit лизинг
Есть вопросы?
звоните или пишите
звоните или пишите
- Aizdevums.lv лизинг
- Incredit лизинг
| Производитель | Gigabyte |
| Вес и размеры | |
|---|---|
| Высота | 35 mm |
| Глубина | 225 mm |
| Ширина | 244 mm |
| Порты и интерфейсы | |
| Bluetooth | 5.3, Yes |
| Батарея | |
| Емкость батареи | 220 mAh |
| Общие характеристики | |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Supported storage drive interfaces | M.2,SATA III |
| RAID support | Yes |
| RAID levels | 0/1/10/5 |
| ECC ?ompatibility | ECC & Non-ECC |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Supported processor sockets | LGA 1851 |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2)/Intel® Core™ Ultra (Series 1) |
| Motherboard form factor | micro ATX |
| Power source type | ATX |
| Supported memory clock speeds | 5600/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800/9066 MHz |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Motherboard chipset family | Intel |
| Audio chip | Realtek ALC897 |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling |
| Antenna included | Yes |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| ACPI version | 5.0 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| WiFi-AP antenna jack | 2 |
| Number of M.2 (M) slots | 2 |
| RGB LED pin header | Yes |
| Number of water pump connectors | 2 |
| Number of RGB LED pin headers | 4 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of CPU fan connectors | 2 |
| Front panel connector | Yes |
| Supported memory clock speed (max) | 9066 MHz |
| Maximum internal memory per slot | 64 GB |
| Clear CMOS jumper | Yes |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Component for | PC |
| PCI Express x16 (Gen 5.x) slots | 1 |
| HDMI ports quantity | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| Package height | 68 mm |
| Package depth | 268 mm |
| Package width | 270 mm |
| Weight | 1225 g |
| Battery type | CR2032 |
| HDMI version | 2.1 |
| Product colour | Brown |
| Summary | GIGABYTE B860M GAMING WIFI6 Motherboard - Intel Core Ultra Series CPUs, 8+1+2 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compati... |
| Unit Calculated Weight | 1.16 kg |
| Unit Calculated Volume | 0.005008 cubm |
| Units per Shipping Box | 1 |
| CnCode | 84733020 |
| Unit Box Width | 0.07 |
| Unit Box Length | 0.27 |
| Unit Box Height | 0.265 |
| Category Code | MBI |
| Line-in | Yes |
| USB 2.0 ports quantity | 3 |
| Battery weight | 3 g |
| Package weight | 1293 g |
| WLAN controller model | Realtek RTL8851BE |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
| Processor manufacturer | Intel |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| Products per shipping (inner) case | 1 pc(s) |
| DirectX version | 12.0 |
| Cooling type | Passive |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Screws included | Yes |
| Microphone in | Yes |
| DisplayPorts quantity | 1 |
| DisplayPort version | 2.1 |
| Batteries included | Yes |
| HDCP | Yes |
| Headphone outputs | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Audio output channels | 7.1 channels |
| Model | B860M GAMING WIFI6 |
