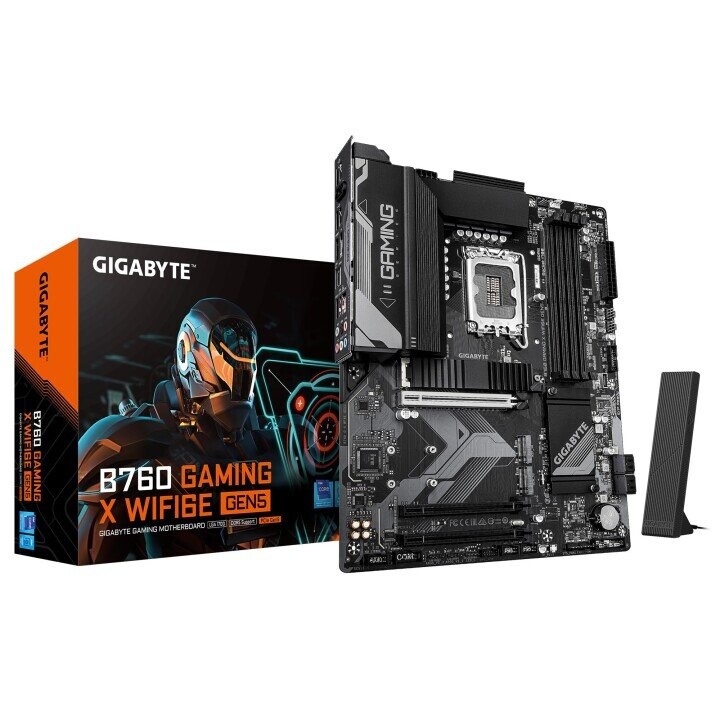

MB B760 S1700 ATX/B760 G X WF6E GEN5 GIGABYTE
Код товара: B760GXWF6EGEN5
153.13 €
- Доступно по цене 153.13 €: 2 шт.
MB B760 S1700 ATX/B760 G X WF6E GEN5 GIGABYTE
B760 GAMING X WIFI6E GEN5
- PCIe Gen5 Performance : Perfect Sync to Win
- Supports Intel® Core™ 14th/ 13th/12 processors
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal
- EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
- PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance : Hybrid 8+1+1 Phases VRM Solution
- Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
- Fast Networks : 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity : Front USB-C® 10Gb/s, DP, HDMI
- Next Generation Storage : 3*PCIe 4.0 x4 M.2 Connectors
- Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
Способы доставки
- Получи в магазине в Резекне 19.01.2026 бесплатно
- Получи в пакомате Venipak 15.01.2026 От 4.24 €
- Получи в пакомате Omniva 20.01.2026 От 4.24 €
- Получи заказ на дом 20.01.2026 От 4.91 €
- Экспресс-доставка 14.01.2026 От 8.50 €
Способы оплаты: Интернет-банк, Банковский перевод, Банковская карта, Aizdevums.lv лизинг, Incredit лизинг
Есть вопросы?
звоните или пишите
звоните или пишите
- Aizdevums.lv лизинг
- Incredit лизинг
| Производитель | Gigabyte |
| Вес и размеры | |
|---|---|
| Высота | 35 mm |
| Глубина | 244 mm |
| Ширина | 305 mm |
| Порты и интерфейсы | |
| Bluetooth | 5.3, Yes |
| Общие характеристики | |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| RAID levels | 0/1/10/5 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2,PCI Express 4.0,SATA III |
| RAID support | Yes |
| Unbuffered memory | Yes |
| Motherboard chipset family | Intel |
| ECC ?ompatibility | ECC & Non-ECC |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Cele... |
| Motherboard form factor | ATX |
| Power source type | ATX |
| LAN controller | Realtek RTL8125 |
| Supported memory clock speeds | 4400/4800/5200/5600 MHz |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Number of M.2 (M) slots | 3 |
| Component for | PC |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| Antenna included | Yes |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| ACPI version | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 4.0 |
| WiFi-AP antenna jack | 2 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Serial port headers | 1 |
| RGB LED pin header | Yes |
| Number of water pump connectors | 2 |
| Number of RGB LED pin headers | 4 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of CPU fan connectors | 2 |
| Front panel connector | Yes |
| Supported memory clock speed (max) | 5600 MHz |
| Maximum internal memory per slot | 64 GB |
| Clear CMOS jumper | Yes |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Package weight | 1800 g |
| Weight | 1610 g |
| USB 2.0 ports quantity | 5 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| Package height | 80 mm |
| Package depth | 270 mm |
| Package width | 335 mm |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Warranty period | 3 year(s) |
| Battery type | CR2032 |
| Product colour | Dark brown |
| Summary | GIGABYTE B760 GAMING X WIFI6E GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible proce... |
| Unit Calculated Weight | 1.84 kg |
| Unit Calculated Volume | 0.01019 cubm |
| Units per Shipping Box | 8 |
| CnCode | 84733020 |
| Unit Box Width | 0.27 |
| Unit Box Length | 0.335 |
| Unit Box Height | 0.08 |
| Category Code | MBI |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Battery weight | 3 g |
| DirectX version | 12.0 |
| Audio chip | Realtek ALC897 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Line-in | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Processor manufacturer | Intel |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| Products per shipping (inner) case | 1 pc(s) |
| Cooling type | Passive |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| Bundled software | Norton® Internet Security (OEM version) |
| Screws included | Yes |
| Microphone in | Yes |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Batteries included | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDCP | Yes |
| Headphone outputs | 1 |
| Country of origin | China |
| Model | B760 GAMING X WIFI6E GEN5 |
| Упаковка | |
| Вес | 1.23 кг |
| Размер коробки | 26.50 x 26.50 x 5.40 см |
