Mainboard | GIGABYTE | AMD B850 | SAM5 | Micro-ATX | Memory
Код товара: B850MGAMINGXWF6E
199.38 € / шт.
- Доступно по цене 199.38 €: 16 шт.
Mainboard | GIGABYTE | AMD B850 | SAM5 | Micro-ATX | Memory DDR5 | Memory slots 4 | 1xPCI-Express 3.0 4x | 1xPCI-Express 5.0 16x | 2xM.2 | 1xHDMI | 2xDisplayPort | 4xUSB 2.0 | 2xUSB 3.2 type B | 1xUSB 3.2 | 1xUSB-C | 1xPS / 2 | 1xRJ45 | 3xAudio port | B850MGAMINGXWF6E

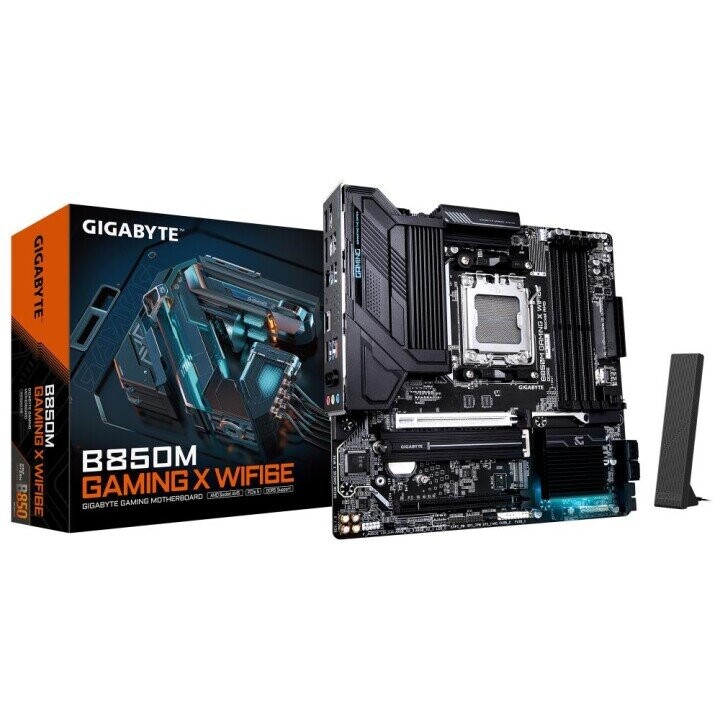

GIGABYTE B850M GAMING X WIFI6E
DDR5 OC
up to 8200MT/s
AMD Socket AM5
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 10+2+2 phases
VRM solution
Dual Channel DDR5
4* DIMMs with AMD EXPO Memory Module Support
WIFI EZ-Plug
Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus
PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click
M.2 heatsinks with screwless design
Friendly UI
Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Efficient Thermal
VRM Thermal Armor Advanced & M.2 Thermal Guard
Fast Networking
2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
Extended Connectivity
HDMI, Displayport
Способы доставки
- Получи в магазине в Резекне 29.12.2025 бесплатно
- Получи в пакомате Venipak 24.12.2025 От 3.03 €
- Получи в пакомате Omniva 30.12.2025 От 3.63 €
- Получи заказ на дом 30.12.2025 От 4.91 €
- Экспресс-доставка 23.12.2025 От 8.50 €
Способы оплаты: Интернет-банк, Банковский перевод, Банковская карта, Aizdevums.lv лизинг, Incredit лизинг
Есть вопросы?
звоните или пишите
звоните или пишите
- Aizdevums.lv лизинг
- Incredit лизинг
| Производитель | Gigabyte |
| Вес и размеры | |
|---|---|
| Высота | 35 mm |
| Глубина | 244 mm |
| Ширина | 244 mm |
| Порты и интерфейсы | |
| Bluetooth | 5.3, Y |
| Общие характеристики | |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Unbuffered memory | Y |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |
| TPM connector | Y |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Y |
| CPU fan connector | Y |
| ATX Power connector (24-pin) | Y |
| 12V power connector | Y |
| Supported storage drive interfaces | M.2,SATA III |
| RAID support | Y |
| RAID levels | 0/1/10 |
| ECC ?ompatibility | non-ECC |
| Motherboard chipset family | AMD |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Motherboard form factor | Micro ATX |
| Power source type | ATX |
| Supported memory clock speeds | 4400/4800/5200/5600/5800/6000/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Y |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Number of M.2 (M) slots | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| PC health monitoring | FAN/Temperature/Voltage/Water cooling |
| Clear CMOS button | Y |
| Antenna included | Y |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| ACPI version | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| WiFi-AP antenna jack | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Serial port headers | 1 |
| RGB LED pin header | Y |
| Number of water pump connectors | 2 |
| Number of RGB LED pin headers | 4 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of CPU fan connectors | 2 |
| Front panel connector | Y |
| Supported memory clock speed (max) | 8200 MHz |
| Maximum internal memory per slot | 64 GB |
| Clear CMOS jumper | Y |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Component for | PC |
| Motherboard chipset | AMD B850 |
| USB 2.0 ports quantity | 4 |
| Weight | 1545 g |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) |
| Wi-Fi | Y |
| Ethernet LAN | Y |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| Package height | 68 mm |
| Package depth | 268 mm |
| Package width | 270 mm |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Package weight | 1747 g |
| Battery type | CR2032 |
| Product colour | Brown |
| Summary | GIGABYTE B850M GAMING X WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 10+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5LAN, WIFI 6E, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compati... |
| Unit Calculated Weight | 1.74 kg |
| Unit Calculated Volume | 0.007338 cubm |
| Units per Shipping Box | 8 |
| CnCode | 84733020 |
| Unit Box Width | 0.27 |
| Unit Box Length | 0.27 |
| Unit Box Height | 0.07 |
| Category Code | MBA |
| Audio chip | Realtek ALC897 |
| Warranty period | 3 year(s) |
| Battery weight | 3 g |
| Audio output channels | 7.1 channels |
| PCI Express x16 (Gen 5.x) slots | 1 |
| WLAN controller model | Realtek RTL8852CE |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| On-board graphics card | N |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Processor manufacturer | AMD |
| Number of HDDs supported | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Number of storage drives supported | 6 |
| Products per shipping (inner) case | 1 pc(s) |
| DirectX version | 12.0 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Screws included | Y |
| Microphone in | Y |
| DisplayPorts quantity | 1 |
| DisplayPort version | 2.1 |
| Batteries included | Y |
| HDCP | Y |
| Headphone outputs | 1 |
| Country of origin | China |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Model | B850M GAMING X WF6E |
| Упаковка | |
| Вес | 1.75 кг |
| Размер коробки | 34.00 x 27.50 x 8.00 см |
