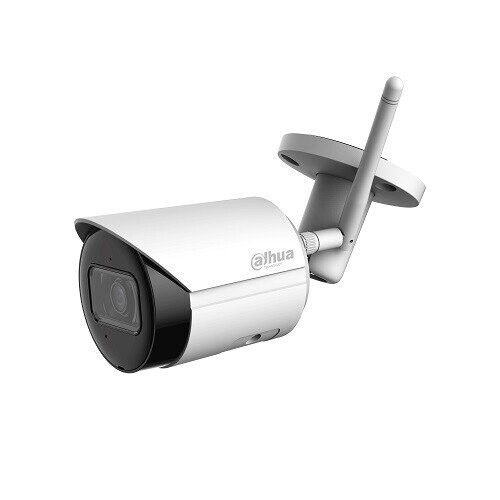

IP Камера 2MP HFW1230DSP-SAW 2.8mm

Camera Image Sensor 1/3" CMOS Max. Resolution 1920 (H) Ч 1080 (V) ROM 16 MB RAM 64 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.025 lux@F2.0 (Color, 30 IRE)
0.0025 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on) S/N Ratio >56 dB Illumination Distance 30 m (98.43 ft) (IR LED) Illuminator On/Off Control Auto; manual Illuminator Number 1 (IR LED) Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360° Lens Lens Type Fixed-focal Lens Mount M12 Focal Length 2.8 mm Max. Aperture F2.0 Field of View 2.8 mm:
Horizontal: 100°; Vertical: 53°; Diagonal: 120°

Iris Control Fixed Close Focus Distance 2.8 mm: 0.6 m (1.97 ft)
DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 46.9 m (153.87 ft) 18.8 m (61.68 ft) 9.4 m (30.84 ft) 4.7 m (15.42 ft) Video Video Compression H.264B; H.264; H.264H; H.265 Smart Codec Smart H.265+; Smart H.264+ Video Frame Rate Main stream:
1920 Ч 1080 (1–25/30 fps)
Sub stream:
704 Ч 576 (1–25 fps)
704 Ч 480 (1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. Stream Capability 2 streams Resolution 1080p (1920 Ч 1080); 960p (1280 Ч 960); 720p (1280 Ч 720) Bit Rate Control CBR/VBR Video Bit Rate H264: 24 kbps–4096 kbps
H265: 9 kbps–4096 kbps Day/Night Auto (ICR)/Color/B/W BLC Yes WDR DWDR White Balance Auto; natural; street lamp; outdoor; manual; regional custom Gain Control Auto Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest (RoI) Yes (4 areas) Smart Illumination Yes Image Rotation 0°/180° Mirror Yes Audio Built-in MIC Yes Alarm Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering;audio detection; intensity change; SMD (human) Network Network Port RJ-45 (10/100 Base-T) Wi-Fi IEEE802.11b/g/n 2.4–2.4835 GHz Wireless Range Up to 80 m (The performance varies based on actual environment) SDK and API Yes Cyber Security Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; Generation and importing of X.509 certification; HTTPS; Trusted boot; Trusted execution; Trusted upgrade Network Protocol IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP Interoperability ONVIF (Profile S/Profile G); CGI; P2P User/Host 6 (Total bandwidth: 36 M) Storage Micro SD card (support max. 256 GB, sold separately) Browser IE
Chrome
Firefox Management Software Smart PSS; DSS; DMSS Mobile Client iOS; Android Certification Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
FCC ID: FCC PART 15C Power Power Supply 12 VDC Power Consumption Basic: 2 W (12 VDC)
Max. (H.265+IR intensity): 4.1 W (12 VDC) Environment Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity ?95% Storage Temperature –30 °C to +70 °C (–22 °F to +158 °F) Protection IP67 Structure Casing Metal Product Dimensions 166.2 mm Ч 70.0 mm Ч 128.6 mm (6.53" Ч 2.76" Ч 5.06") Net Weight 477.9 g (1.05 lb) Gross Weight 696.5 g (1.50 lb)
