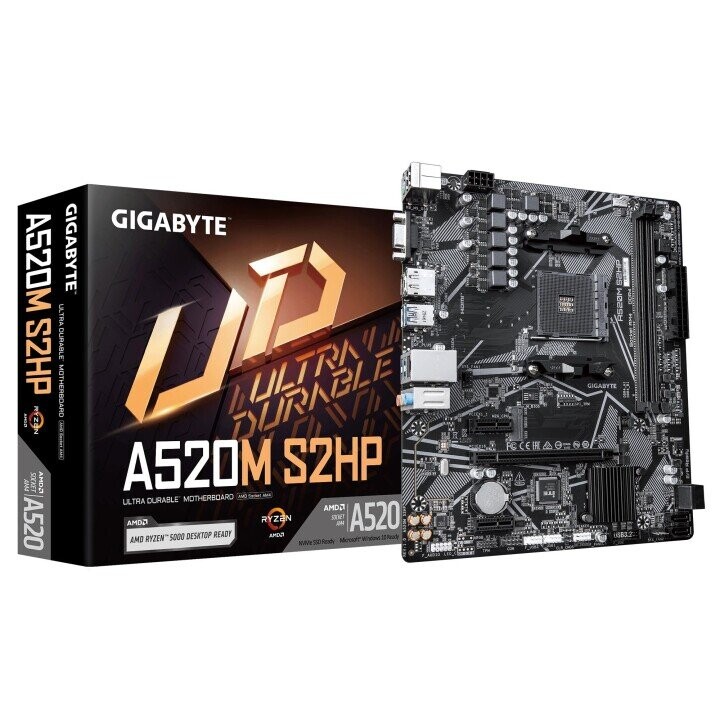

Mainboard|GIGABYTE|AMD A520|Socket AM4|micro ATX|RAM
Preces kods: A520MS2HP1.0
66.76 € / gab.
- Pieejams par cenu 66.76 €: 30 gab.
Mainboard|GIGABYTE|AMD A520|Socket AM4|micro ATX|RAM DDR4-SDRAM|2xSlots|1xNumber of M.2 (M) slots|A520MS2HP1.0
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge/
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- 4+2 Phases Hybrid Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
- Fast Networks: GbE LAN
- HDMI, Display Port, D-sub Ports for Multiple Display
- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Anti-Sulfur Resistors Design
Piegādes veidi
- Saņem veikalā Rēzekne 27.10.2026 par brīvu
- Saņem Venipak pakomātā 28.10.2026 No 4.84 €
- Saņem Omniva pakomātā 28.10.2026 No 5.45 €
- Saņem pasūtījumu mājās 28.10.2026 No 7.74 €
- Express piegāde 21.10.2026 No 6.50 €
Apmaksas veidi: Internetbanka, Bankas pārskaitījums, Bankas karte
Jums ir jautājumi?
Zvaniet vai rakstiet
Zvaniet vai rakstiet
| Ražotājs | Gigabyte |
| Svars&dimensijas | |
|---|---|
| Augstums | 35 mm |
| Dziļums | 205 mm |
| Platums | 244 mm |
| Akumulators | |
| Akumulatora jauda | 220 mAh |
| Kopējie parametri | |
| Unit Height | 5.5 cm |
| ATX Power connector (24-pin) | Yes |
| Motherboard chipset family | AMD |
| Ethernet interface type | Gigabit Ethernet |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| CPU fan connector | Yes |
| Supported storage drive interfaces | M.2,PCI Express 3.0,SATA |
| PCI Express x16 (Gen 3.x) slots | 1 |
| RAID support | Yes |
| RAID levels | 0/1/10 |
| ECC ?ompatibility | ECC & Non-ECC |
| Supported processor sockets | Socket AM4 |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Motherboard form factor | micro ATX |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 1 |
| BIOS memory size | 128 Mbit |
| Supported memory types | DDR4-SDRAM |
| Clear CMOS button | Yes |
| Unit Depth | 27 cm |
| Unit Width | 23 cm |
| Name | MB AMD A520 SAM4 MATX/A520M S2HP 1.0 GIGABYTE |
| Bullet Points | Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series ProcessorsDual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs4+2 Phases Hybrid Digital VRM Solution with Low RDS(on... |
| Long Description | GIGABYTE A520M S2HP Motherboard. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported stora... |
| Maximum number of SMP processors | 1 |
| Power fan connector | Yes |
| Number of battery cells | 1 |
| BIOS type | UEFI AMI |
| Lithium weight per battery | 0.07 g |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| ACPI version | 5.0 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |
| Supported memory clock speed (max) | 3200 MHz |
| Clear CMOS jumper | Yes |
| Supported memory clock speeds | 2133/2400/2667/2933/3200/3333/3600/4866 MHz |
| Number of memory slots | 2 |
| Wi-Fi | No |
| Product colour | Black |
| Ethernet LAN | Yes |
| Package height | 52 mm |
| Package depth | 235 mm |
| Package width | 265 mm |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Summary | GIGABYTE A520M S2HP Motherboard. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported stora... |
| Ethernet LAN (RJ-45) ports | 1 |
| Unit Calculated Weight | 0.78 kg |
| Unit Calculated Volume | 0.004187 cubm |
| Units per Shipping Box | 10 |
| CnCode | 84733020 |
| Unit Box Width | 0.23 |
| Unit Box Length | 0.27 |
| Unit Box Height | 0.055 |
| Memory slots type | DIMM |
| HDMI ports quantity | 1 |
| Akumulatora svars | 3 g |
| Processor manufacturer | AMD |
| Component for | PC |
| PS/2 ports quantity | 1 |
| Motherboard chipset | AMD A520 |
| On-board graphics card | No |
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Products per shipping (inner) case | 1 pc(s) |
| USB 2.0 ports quantity | 2 |
| Batteries included | Yes |
| HDCP | Yes |
| Country of origin | China |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Audio output channels | 7.1 channels |
| Warranty period | 3 year(s) |
| Package weight | 772 g |
| Category Code | MBA |
| Iepakojums | |
| Svars | 7.80 kg |
| Kastes izmērs | 56.50 x 28.50 x 26.00 cm |
