Mainboard|GIGABYTE|AMD B550|Socket AM4|ATX|RAM DDR4-SDRAM|4xSlots|Wi-Fi
Preces kods: B550AORUSELITEAXV21.6
141.01 € / gab.
- Pieejams par cenu 141.01 €: 8 gab.
Mainboard|GIGABYTE|AMD B550|Socket AM4|ATX|RAM DDR4-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|2xNumber of M.2 (M) slots|GIGABYTE B550 AORUS ELITE AX V2 (Rev. 1.6)|B550AORUSELITEAXV21.6

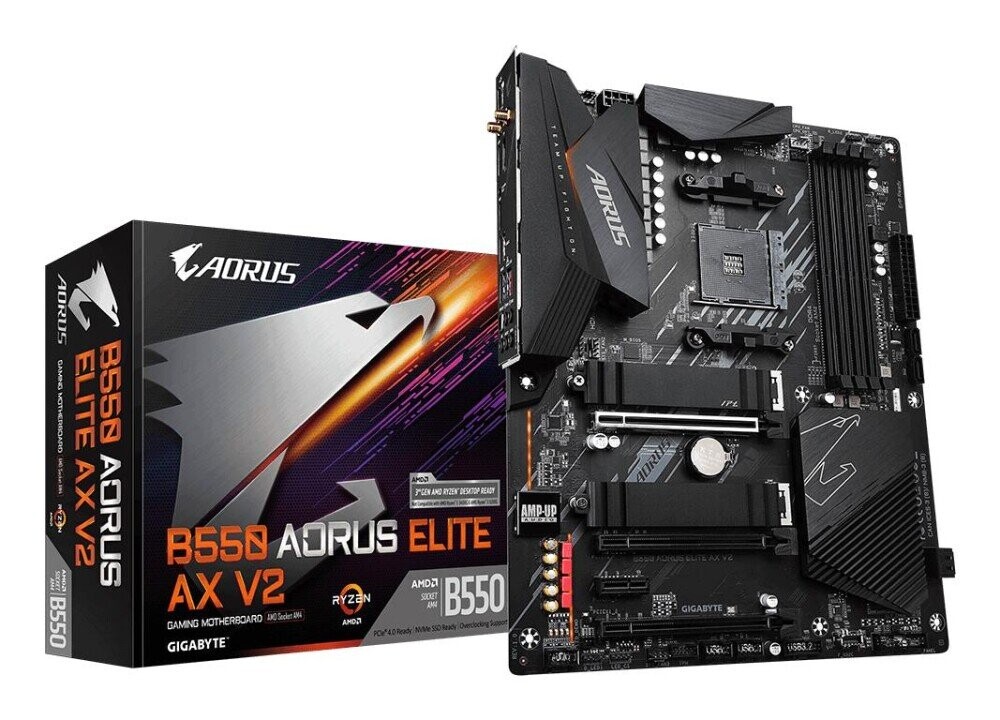

GIGABYTE B550 AORUS ELITE AX V2
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge/
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge/
GIGABYTE B550 AORUS ELITE AX V2
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 and Ryzen 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 12+2 Phases Digital Twin Power Design with 50A DrMOS
- Advanced Thermal Design with Enlarged Surface Heatsinks
- Ultra Durable™ PCIe 4.0 x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards
- Onboard WiFi 6E 802.11ax & BT 5.2
- AMP-UP Audio with ALC1200 and WIMA Capacitors
- Blazing Fast 2.5GbE LAN with Bandwidth Management
- Front USB 3.2 Gen1 Type-C and DisplayPort & HDMI for Multiple Display
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Pre-installed IO Shield for Easy and Quick Installation
Piegādes veidi
- Saņem veikalā Rēzekne 24.08.2026 par brīvu
- Saņem pasūtījumu mājās 25.08.2026 No 3.62 €
- Express piegāde 19.08.2026 No 6.00 €
Apmaksas veidi: Internetbanka, Bankas pārskaitījums, Bankas karte, Aizdevums.lv lizings, Incredit lizings
Jums ir jautājumi?
Zvaniet vai rakstiet
Zvaniet vai rakstiet
- Aizdevums.lv lizings
- Incredit lizings
| Ražotājs | Gigabyte |
| Svars&dimensijas | |
|---|---|
| Augstums | 35 mm |
| Dziļums | 244 mm |
| Platums | 305 mm |
| Savienojamība | |
| Bluetooth | 5.3, Yes |
| Kopējie parametri | |
| Bullet Points | Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 and Ryzen 3000 G-Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 12+2 Phases Digital Twin Power Design with 50A DrMO... |
| RAID levels | 0/1/10 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 2.0 connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2,SATA III |
| RAID support | Yes |
| Unbuffered memory | Yes |
| Motherboard chipset family | AMD |
| ECC ?ompatibility | ECC & Non-ECC |
| Supported processor sockets | Socket AM4 |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series |
| Motherboard form factor | ATX |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Power source type | ATX |
| LAN controller | Realtek RTL8125 |
| Supported memory clock speeds | 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Ethernet interface type | 2.5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet |
| Number of M.2 (M) slots | 2 |
| EPS power connector (8-pin) | Yes |
| 1st M.2 highest PCI Express generation | 4.0 |
| Long Description | GIGABYTE B550 AORUS ELITE AX V2 Motherboard. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum intern... |
| Maximum number of SMP processors | 1 |
| Antenna included | Yes |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| ACPI version | 5.0 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| 1st M.2 largest key size | 22110 |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling |
| PCI Express x16 (Gen 3.x) slots | 2 |
| WiFi-AP antenna jack | 2 |
| RGB LED pin header | Yes |
| Number of water pump connectors | 4 |
| Number of RGB LED pin headers | 5 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of CPU fan connectors | 1 |
| Front panel connector | Yes |
| Supported memory clock speed (max) | 4733 MHz |
| Maximum internal memory per slot | 32 GB |
| Clear CMOS jumper | Yes |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Memory slots type | DIMM |
| Component for | PC |
| Warranty period | 3 year(s) |
| Package width | 335 mm |
| USB 2.0 ports quantity | 2 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| Package height | 80 mm |
| Package depth | 270 mm |
| Weight | 1120 g |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Product colour | Black |
| Summary | GIGABYTE B550 AORUS ELITE AX V2 Motherboard. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum intern... |
| Unit Calculated Weight | 1.81 kg |
| Unit Calculated Volume | 0.0102 cubm |
| Units per Shipping Box | 8 |
| Unit Box Width | 0.27 |
| Unit Box Length | 0.335 |
| Unit Box Height | 0.08 |
| Category Code | MBA |
| Package weight | 1887.5 g |
| Audio output channels | 7.1 channels |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Products per shipping (inner) case | 1 pc(s) |
| Motherboard chipset | AMD B550 |
| Audio chip | Realtek ALC897 |
| S/PDIF out port | Yes |
| Line-in | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
| Processor manufacturer | AMD |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| DirectX version | 12.0 |
| Cooling type | Passive |
| Parallel processing technology support | Not supported |
| Maximum resolution | 5120 x 2880 pixels |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Screws included | Yes |
| Microphone in | Yes |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Batteries included | Yes |
| HDCP | Yes |
| Headphone outputs | 1 |
| Country of origin | China |
| Akumulatora svars | 3 g |
| Model | GIGABYTE B550 AORUS ELITE AX V2 (Rev. 1.6) |
