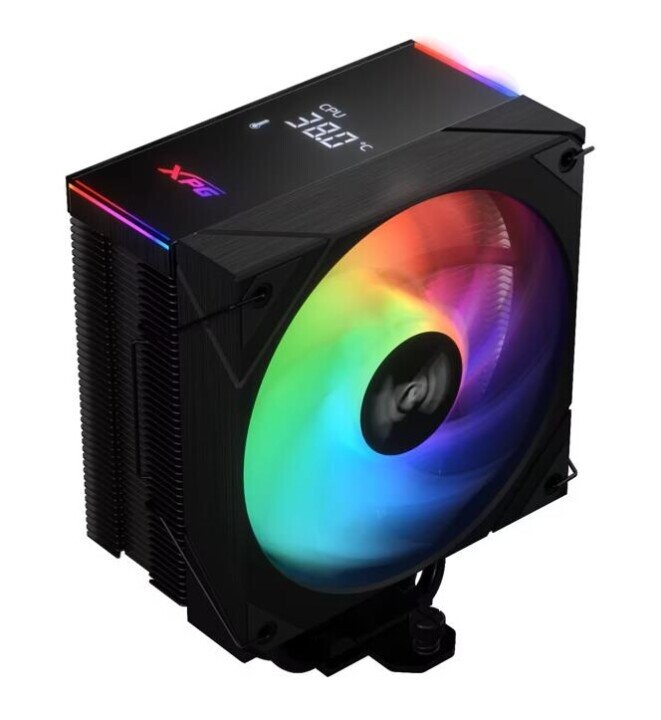

CPU COOLER S_MULTI/MAESTROPLUS42SA-BKCWW ADATA

Preces kods: MAESTROPLUS42SA-BKCWW
Garantija: 60 mēneši
ADATA
Atvainojiet prece nav pieejama!
Jums ir jautājumi?
Zvaniet vai rakstiet
Drukāt
Ražotājs ADATA
Svars&dimensijas
Augstums 156 mm
Dziļums 71 mm
Platums 120 mm
Kopējie parametri
Number of heat pipes 4
Fan speed (min) 800 RPM
Pulse-width modulation (PWM) support Yes
Maximum airflow 63.62 cfm
Fan connector 4-pin
Supported processor sockets LGA 1150 (Socket H3)/LGA 1151 (Socket H4)/LGA 1155 (Socket H2)/LGA 1156 (Socket H)/LGA 1200 (Socket H5)/LGA 1700/LGA 1851/Socket AM3/Socket AM4/Socket AM5
Fan noise level (max) 21.19 dB
Fan speed (max) 1800 RPM
Suitable location Processor
Illumination colour Multi
Fan dimensions (W x D x H) 120 x 120 x 25 mm
Illumination LED Yes
LED connector type 3-pin
Fan power consumption 3 W
Fan static pressure 1.39 mmH2O
Number of fan blades 9
LED voltage 5 V
Fan diameter 120 mm
Mean time between failures (MTBF) 70000 h
Units per Shipping Box 20
Termiskā projektētā jauda (TDP) 220 W
Warranty period 2 year(s)
Weight 571 g
Product colour Black
Summary XPG MAESTRO PLUS 42SA CPU Air Cooler. Type: Air cooler, Fan diameter: 12 cm, Bearing type: Fluid Dynamic Bearing (FDB). Width: 120 mm, Depth: 71 mm, Height: 156 mm. Product colour: Black
Unit Calculated Weight 0.823 kg
Product Net Weight 0.571 kg
Unit Calculated Volume 0.003776 cubm
Type Air cooler
Unit Box Width 0.115
Unit Box Length 0.15
Unit Box Height 0.18
Bearing type Fluid Dynamic Bearing (FDB)
Category Code COC
Number of fans 1 fan(s)
