Server Memory Module|KINGSTON|DDR5| 32 GB|Unregistered
Preces kods: KSM56E46BD8KM-32HA
1363.00 € / gab.
- Pieejams par cenu 1363.00 €: 5 gab.
Server Memory Module|KINGSTON|DDR5| 32 GB|Unregistered (unbuffered)|CL 46|1.1 V|288-pin DIMM|ECC Yes|KSM56E46BD8KM-32HA

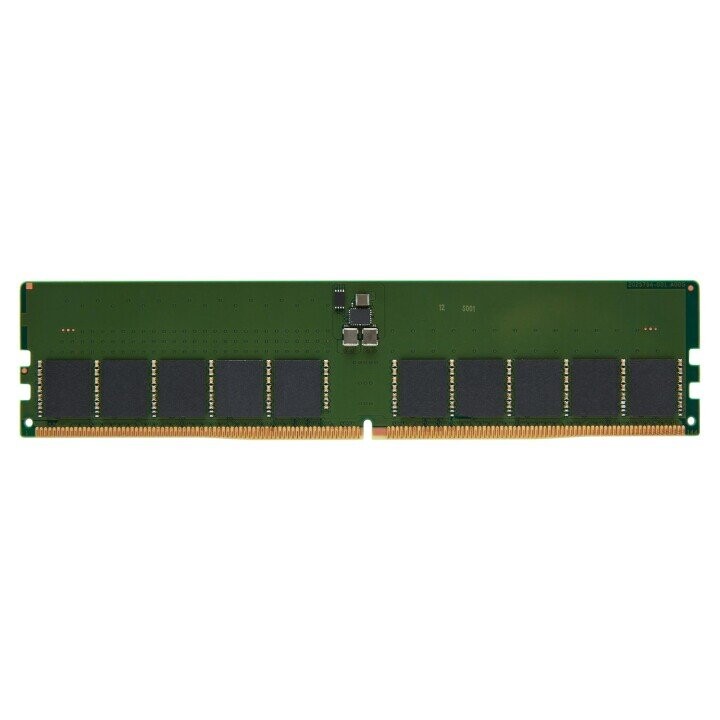

Kingston KSM56E46BD8KM-32HA
is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x72 ECC (x36, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
Piegādes veidi
- Saņem veikalā Rēzekne 24.03.2026 par brīvu
- Saņem pasūtījumu mājās 25.03.2026 No 3.62 €
- Express piegāde 19.03.2026 No 6.00 €
Apmaksas veidi: Internetbanka, Bankas pārskaitījums, Bankas karte, Aizdevums.lv lizings, Incredit lizings
Jums ir jautājumi?
Zvaniet vai rakstiet
Zvaniet vai rakstiet
- Aizdevums.lv lizings
- Incredit lizings
| Ražotājs | Kingston |
| Svars&dimensijas | |
|---|---|
| Augstums | 31.25 mm |
| Platums | 133.35 mm |
| Kopējie parametri | |
| Row Precharge Time (TRP) | 16 |
| SPD profile | Yes |
| Component for | Server |
| Memory form factor | 288-pin DIMM |
| ECC | Yes |
| Memory layout (modules x size) | 1 x 32 GB |
| JEDEC standard | Yes |
| Memory voltage | 1.1 V |
| Lead plating | Gold |
| Buffered memory type | Unregistered (unbuffered) |
| On-Die ECC | Yes |
| Module configuration | 4096M x 72 |
| Memory ranking | 2 |
| Programming power voltage (VPP) | 1.8 V |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Row cycle time | 48 ns |
| CAS latency | 46 |
| Memory data transfer rate | 5600 MT/s |
| Summary | Kingston Technology KSM56E46BD8KM-32HA. Component for: Server, Internal memory: 32 GB, Memory layout (modules x size): 1 x 32 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 46, ECC, Product colour: Black, Green |
| Internal memory type | DDR5 |
| Unit Box Length | 0.045 |
| Unit Box Width | 0.145 |
| CnCode | 84733020 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 4.567E-05 cubm |
| Unit Calculated Weight | 0.029 kg |
| Product colour | Black/Green |
| Category Code | MES |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 - 95 °C |
| Sustainability compliance | Yes |
| Doesn't contain | Halogen |
| Storage temperature (T-T) | -55 - 100 °C |
| Internal memory | 32 GB |
| Unit Box Height | 0.007 |
