Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory
Preces kods: B760MGXWF6EGEN5
154.71 € / gab.
- Pieejams par cenu 154.71 €: 5 gab.
Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|B760MGXWF6EGEN5

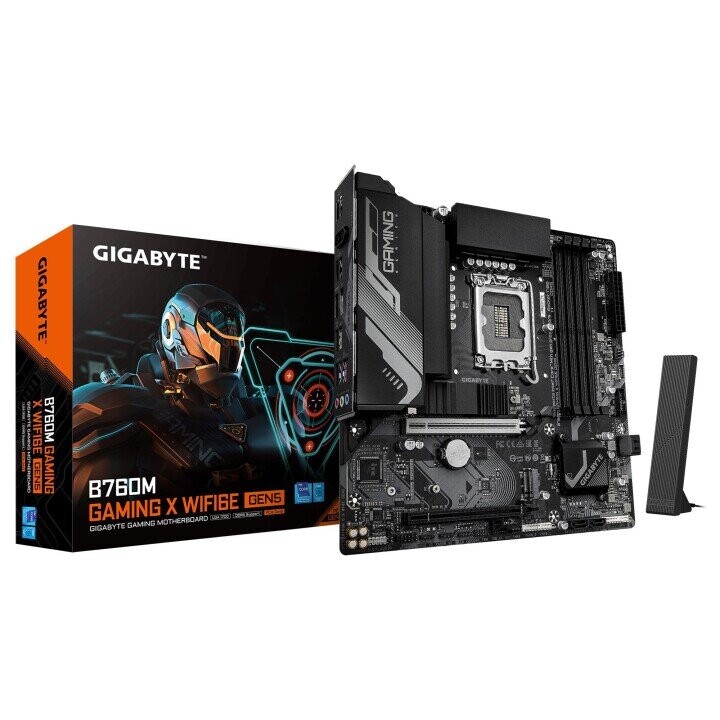

B760M GAMING X WIFI6E GEN5
- PCIe Gen5 Performance : Perfect Sync to Win
- Supports Intel® Core™ 14th/ 13th/12 processors
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal
- EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
- PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance : Hybrid 8+1+1 Phases VRM Solution
- Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
- Fast Networks : 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity : Front USB-C® 10Gb/s, DP, HDMI
- Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
- Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
Piegādes veidi
- Saņem veikalā Rēzekne 08.12.2025 par brīvu
- Saņem pasūtījumu mājās 09.12.2025 No 3.62 €
- Express piegāde 03.12.2025 No 6.00 €
Apmaksas veidi: Internetbanka, Bankas pārskaitījums, Bankas karte, Aizdevums.lv lizings, Incredit lizings
Jums ir jautājumi?
Zvaniet vai rakstiet
Zvaniet vai rakstiet
- Aizdevums.lv lizings
- Incredit lizings
| Ražotājs | Gigabyte |
| Svars&dimensijas | |
|---|---|
| Augstums | 35 mm |
| Dziļums | 244 mm |
| Platums | 244 mm |
| Savienojamība | |
| Bluetooth | 5.3, Yes |
| Kopējie parametri | |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Unbuffered memory | Yes |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2,PCI Express 4.0,SATA III |
| RAID support | Yes |
| RAID levels | 0/1/10/5 |
| ECC ?ompatibility | ECC & Non-ECC |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel Celeron/Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th G... |
| Motherboard form factor | micro ATX |
| Power source type | ATX |
| LAN controller | Realtek RTL8125 |
| Supported memory clock speeds | 4400/4800/5200/5600 MHz |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| EPS power connector (8-pin) | Yes |
| USB 2.0 connectors | 2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Motherboard chipset | Intel B760 |
| WiFi-AP antenna jack | 2 |
| Thunderbolt headers | 2 |
| Antenna included | Yes |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| ACPI version | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling |
| Serial port headers | 1 |
| Motherboard chipset family | Intel |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of CPU fan connectors | 1 |
| Front panel connector | Yes |
| Supported memory clock speed (max) | 5600 MHz |
| Maximum internal memory per slot | 64 GB |
| Clear CMOS jumper | Yes |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| HDMI version | 2.1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| Package height | 68 mm |
| Package depth | 268 mm |
| Package width | 270 mm |
| Weight | 1420 g |
| Battery type | CR2032 |
| USB 2.0 ports quantity | 5 |
| Product colour | Dark brown |
| Summary | GIGABYTE B760M GAMING X WIFI6E GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible proc... |
| Unit Calculated Weight | 1.63 kg |
| Product Net Weight | 0.7 kg |
| Unit Calculated Volume | 0.00742 cubm |
| Units per Shipping Box | 8 |
| CnCode | 84733020 |
| Unit Box Width | 0.267 |
| Unit Box Length | 0.274 |
| Unit Box Height | 0.07 |
| Category Code | MBI |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Package weight | 1600 g |
| Akumulatora svars | 3 g |
| Warranty period | 3 year(s) |
| Line-in | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Processor manufacturer | Intel |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| Products per shipping (inner) case | 1 pc(s) |
| DirectX version | 12.0 |
| Cooling type | Passive |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Screws included | Yes |
| Microphone in | Yes |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Batteries included | Yes |
| HDCP | Yes |
| Headphone outputs | 1 |
| Country of origin | China |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Audio output channels | 7.1 channels |
| Model | B760M G X WF6E GEN5 |
