AMD B650|SAM5|Micro-ATX|DDR5|7200/6800/6600/6400/6200/6000/5600/5200/4800/4400 MHz|Memory slots 2|1xPCI-Express 3.0
Preces kods: B650MS2H1.3
94.20 € / gab.
- Pieejams par cenu 94.20 €: 22 gab.
AMD B650|SAM5|Micro-ATX|DDR5|7200/6800/6600/6400/6200/6000/5600/5200/4800/4400 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express 4.0 8x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header

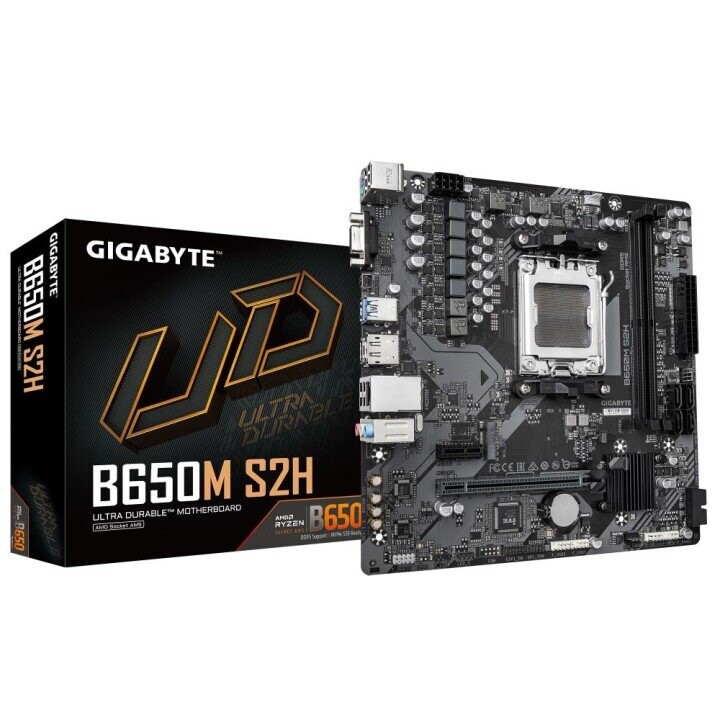

B650M S2H (rev. 1.3)
- AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：GbE LAN
- Extended Connectivity：DP, HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Piegādes veidi
- Saņem veikalā Rēzekne 28.07.2025 par brīvu
- Saņem Venipak pakomātā 29.07.2025 No 3.03 €
- Saņem Omniva pakomātā 29.07.2025 No 4.72 €
- Saņem pasūtījumu mājās 29.07.2025 No 7.74 €
- Express piegāde 22.07.2025 No 6.00 €
Apmaksas veidi: Internetbanka, Bankas pārskaitījums, Bankas karte, Incredit lizings
Jums ir jautājumi?
Zvaniet vai rakstiet
Zvaniet vai rakstiet
- Incredit lizings
| Ražotājs | Gigabyte |
| Procesors | |
|---|---|
| Procesora ligzda | SAM5 |
| Čipsets | AMD B650 |
| Darbības rādītāji | |
| Mātes plates formas faktors | Micro-ATX |
| Iekšējie I/O | |
| M.2 slotu skaits | 1 |
| Paplašināšanas sloti | |
| PCI-Express 4.0 16x | 1 |
| Datu uzglabāšanas līdzekļi | |
| RAID līmeņi | SATA 0, 1, 10; NVMe 0, 1, 10 |
| Savienojamība | |
| USB 3.2 portu skaits | 2 |
| HDMI pieslēgvietu skaits | 1 |
| USB 2.0 pieslēgvietu skaits | 4 |
| Ethernet LAN (RJ-45) pieslēgvietu skaits | 1 |
| DisplayPort | 1 |
| VGA (D-Sub) pieslēgvietu skaits | 1 |
| Atmiņa | |
| Atmiņas tips | DDR5 |
| Atmiņas sloti | 2 |
| Kopējie parametri | |
| Unit Calculated Weight | 1 kg |
| Category Code | MBA |
| PCI-Express 4.0 8x | 1 |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.265 |
| PCI-Express 3.0 1x | 1 |
| Unit Box Width | 0.266 |
| TPM | Header |
| Frekvences ātrums | 4400/4800/5200/5600/6000/6200/6400/6600/6800/7200 MHz |
| Audio ports | 3 |
| CnCode | 84733020 |
| PS / 2 | 1 |
| SATA | Yes |
| Units per Shipping Box | 10 |
| Integrēts video | Depending on CPU |
| Integrēts LAN | Gigabit |
| Integrēts audio | Yes |
| Unit Calculated Volume | 0 cubm |
| Product Net Weight | 1 kg |
| PCI-Express 4.0 4x | 1 |
| Model | B650M S2H |
| Iepakojums | |
| Svars | 8.95 kg |
| Kastes izmērs | 57.30 x 28.90 x 28.60 cm |
