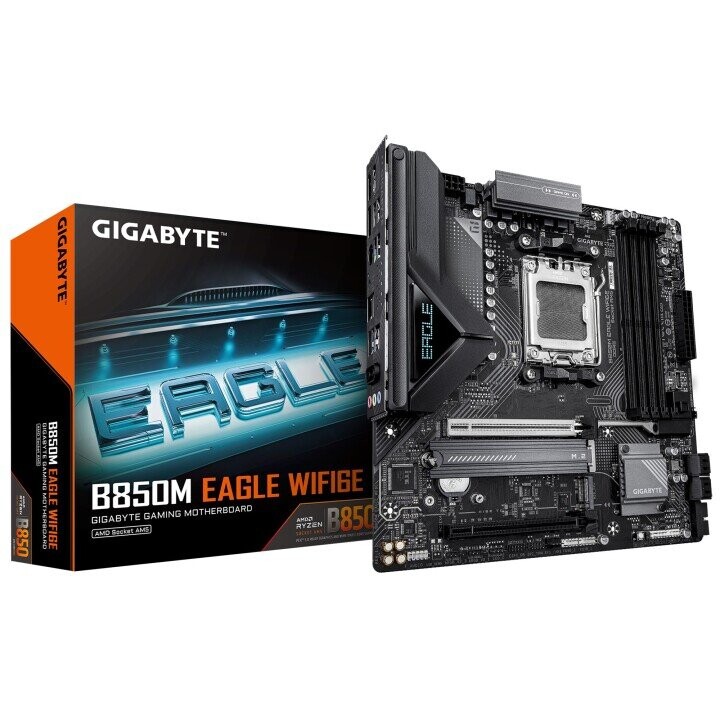

MB AMD B850 SAM5 MATX/B850M EAGLE WF6E GIGABYTE
Preces kods: B850MEAGLEWF6E
172.22 € / gab.
- Pieejams par cenu 172.22 €: 2 gab.
MB AMD B850 SAM5 MATX/B850M EAGLE WF6E GIGABYTE
GIGABYTE B850M EAGLE WIFI6E
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 8+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5 GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
- Extended Connectivity : HDMI, 2*Displayport
- PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
Piegādes veidi
- Saņem veikalā Rēzekne 08.12.2025 par brīvu
- Saņem pasūtījumu mājās 09.12.2025 No 3.62 €
- Express piegāde 03.12.2025 No 6.00 €
Apmaksas veidi: Internetbanka, Bankas pārskaitījums, Bankas karte, Aizdevums.lv lizings, Incredit lizings
Jums ir jautājumi?
Zvaniet vai rakstiet
Zvaniet vai rakstiet
- Aizdevums.lv lizings
- Incredit lizings
| Ražotājs | Gigabyte |
| Svars&dimensijas | |
|---|---|
| Augstums | 35 mm |
| Dziļums | 244 mm |
| Platums | 244 mm |
| Savienojamība | |
| Bluetooth | 5.3, Y |
| Kopējie parametri | |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Supported processor sockets | Socket AM5 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Y |
| CPU fan connector | Y |
| ATX Power connector (24-pin) | Y |
| 12V power connector | Y |
| Supported storage drive interfaces | M.2,PCI Express 4.0,PCI Express 5.0,SATA III |
| RAID support | Y |
| RAID levels | 0/1/10/5 |
| Unbuffered memory | Y |
| ECC ?ompatibility | non-ECC |
| Processor socket | Socket AM5 |
| USB 2.0 connectors | 2 |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Motherboard form factor | Micro ATX |
| Power source type | ATX |
| LAN controller | Realtek RTL8125 |
| Supported memory clock speeds | 4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| EPS power connector (8-pin) | Y |
| Component for | PC |
| PS/2 ports quantity | 1 |
| TPM connector | Y |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Motherboard chipset | AMD B850 |
| RGB LED pin header | Y |
| Antenna included | Y |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| ACPI version | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| PC health monitoring | FAN/Temperature/Voltage/Water cooling |
| WiFi-AP antenna jack | 2 |
| Number of water pump connectors | 2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Number of RGB LED pin headers | 4 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of CPU fan connectors | 2 |
| Front panel connector | Y |
| Supported memory clock speed (max) | 8200 MHz |
| Maximum internal memory per slot | 64 GB |
| Clear CMOS jumper | Y |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| Motherboard chipset family | AMD |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Audio chip | Realtek ALC897 |
| Package weight | 1462.5 g |
| Weight | 1260 g |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) |
| Wi-Fi | Y |
| Ethernet LAN | Y |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| Package height | 68 mm |
| Package depth | 268 mm |
| Package width | 270 mm |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Battery type | CR2032 |
| Product colour | Dark brown |
| Summary | GIGABYTE B850M EAGLE WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, WIFI 6E, 2.5 GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compat... |
| Unit Calculated Weight | 1.48 kg |
| Unit Calculated Volume | 0.00713 cubm |
| Units per Shipping Box | 8 |
| CnCode | 84733020 |
| Unit Box Width | 0.07 |
| Unit Box Length | 0.27 |
| Unit Box Height | 0.265 |
| Category Code | MBA |
| USB 2.0 ports quantity | 4 |
| Warranty period | 3 year(s) |
| Audio output channels | 7.1 channels |
| Parallel processing technology support | Not supported |
| Line-in | Y |
| WLAN controller model | Realtek RTL8852CE |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Processor manufacturer | AMD |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| Products per shipping (inner) case | 1 pc(s) |
| DirectX version | 12.0 |
| Cooling type | Passive |
| Maximum resolution | 4096 x 2160 pixels |
| Bundled software | Norton® Internet Security (OEM version); LAN bandwidth management software |
| Screws included | Y |
| Microphone in | Y |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Batteries included | Y |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDCP version | 2.3 |
| HDCP | Y |
| Headphone outputs | 1 |
| Country of origin | China |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Akumulatora svars | 3 g |
| Model | B850M EAGLE WF6E |
