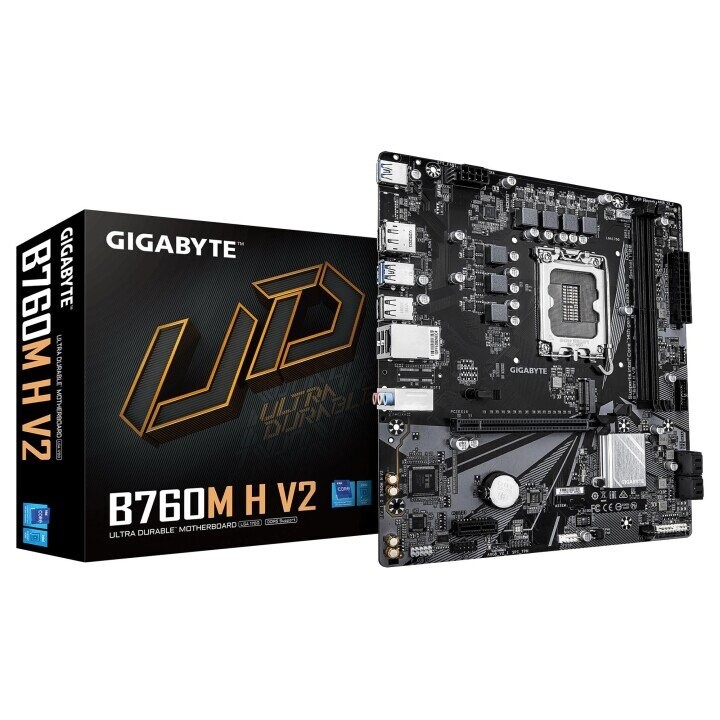

MB B760 S1700 MATX/B760M H V2 1.0 GIGABYTE
Preces kods: B760MHV21.0
96.67 € / gab.
- Pieejams par cenu 96.67 €: 6 gab.
MB B760 S1700 MATX/B760M H V2 1.0 GIGABYTE
Piegādes veidi
- Saņem veikalā Rēzekne 08.12.2025 par brīvu
- Saņem pasūtījumu mājās 09.12.2025 No 3.62 €
- Express piegāde 03.12.2025 No 6.00 €
Apmaksas veidi: Internetbanka, Bankas pārskaitījums, Bankas karte, Incredit lizings
Jums ir jautājumi?
Zvaniet vai rakstiet
Zvaniet vai rakstiet
- Incredit lizings
| Ražotājs | Gigabyte |
| Svars&dimensijas | |
|---|---|
| Augstums | 35 mm |
| Dziļums | 220 mm |
| Platums | 244 mm |
| Akumulators | |
| Akumulatora jauda | 220 mAh |
| Kopējie parametri | |
| Number of battery cells | 1 |
| Processor socket | LGA 1700 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2,PCI Express 4.0,SATA III |
| RAID support | Yes |
| RAID levels | 0/1/10/5 |
| Unbuffered memory | Yes |
| ECC ?ompatibility | ECC & Non-ECC |
| Supported processor sockets | LGA 1700 |
| Compatible processor series | Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Cele... |
| Number of SATA III connectors | 4 |
| Motherboard form factor | micro ATX |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Power source type | ATX |
| LAN controller | Realtek RTL8111H |
| Supported memory clock speeds | 4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000 MHz |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| EPS power connector (8-pin) | Yes |
| Component for | PC |
| Number of chassis fan connectors | 2 |
| TPM connector | Yes |
| Audio chip | Realtek ALC897 |
| Number of RGB LED pin headers | 2 |
| Lithium weight per battery | 0.07 g |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| ACPI version | 5.0 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling |
| Serial port headers | 1 |
| RGB LED pin header | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| USB 2.0 connectors | 1 |
| Number of CPU fan connectors | 1 |
| Front panel connector | Yes |
| Supported memory clock speed (max) | 8000 MHz |
| Maximum internal memory per slot | 64 GB |
| Clear CMOS jumper | Yes |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Number of M.2 (M) slots | 1 |
| Motherboard chipset family | Intel |
| Ethernet interface type | Gigabit Ethernet |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Motherboard chipset | Intel B760 Express |
| Line-in | Yes |
| HDMI version | 2.1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| Package height | 54 mm |
| Package depth | 265 mm |
| Package width | 265 mm |
| Weight | 770 g |
| Battery type | CR2032 |
| USB 2.0 ports quantity | 4 |
| Product colour | Dark brown |
| Summary | GIGABYTE B760M H V2 Motherboard - Supports Intel Core 14th Gen CPUs, 5+1+1 Phases Digital VRM, up to 8000MHz DDR5 (O.C.), 1xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: In... |
| Unit Calculated Weight | 0.85 kg |
| Unit Calculated Volume | 0.004669 cubm |
| Units per Shipping Box | 10 |
| CnCode | 84733020 |
| Unit Box Width | 0.055 |
| Unit Box Length | 0.265 |
| Unit Box Height | 0.26 |
| Memory channels | Dual-channel |
| Package weight | 850 g |
| Akumulatora svars | 3 g |
| Bundled software | Norton® Internet Security (OEM version) |
| Maximum internal memory | 128 GB |
| Processor manufacturer | Intel |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 5 |
| Products per shipping (inner) case | 1 pc(s) |
| DirectX version | 12.0 |
| Cooling type | Passive |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| Screws included | Yes |
| Warranty period | 3 year(s) |
| Microphone in | Yes |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Batteries included | Yes |
| HDCP version | 2.3 |
| HDCP | Yes |
| Headphone outputs | 1 |
| Country of origin | China |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Audio output channels | 7.1 channels |
| Category Code | MBI |
| Model | B760M H V2 |
